Revit AI Automation for LEED Documentation and BIM Workflows

LEED projects often fail on paperwork before they fail on design intent. A model may include efficient fixtures, low-emitting materials, high-performance systems, and carefully designed spaces, yet the team still spends hours copying values into spreadsheets, checking missing parameters, writing credit narratives, and matching model data to LEED documentation forms.

That is where Revit automation becomes useful.

Revit automation means using rules, scripts, schedules, plugins, Dynamo graphs, or the Revit API to perform repeatable tasks inside Autodesk Revit. Instead of manually checking every air terminal, plumbing fixture, room, material, or wall assembly, an automated workflow can extract data, validate it, tag exceptions, and prepare reports.

AI adds another layer. It can read structured BIM data, compare it against project requirements, summarize missing information, suggest credit documentation language, classify materials, and help teams coordinate sustainable building design tasks earlier in the process. When paired with Building Information Modeling, AI can reduce repetitive coordination work and give architects, MEP engineers, BIM managers, sustainability consultants, contractors, and owners a clearer view of LEED readiness.

LEED documentation is a strong fit for automation because much of it is repetitive. Teams often need to collect the same categories of information across many elements:

• Room names, areas, occupancy, and daylight zones

• Plumbing fixture flow rates and flush rates

• Mechanical ventilation data

• Material ingredients, recycled content, and environmental product declarations

• Lighting power density and controls

• Envelope assemblies and thermal properties

• Energy modeling inputs and equipment performance data

• Construction waste, regional materials, and product submittals




A Revit AI Workflow does not replace professional judgment or LEED reviewer requirements. It helps the project team find gaps earlier, keep data consistent, and spend less time on copy-and-paste documentation.

Revit automation brings model data closer to LEED documentation tasks.

Prerequisites

Before connecting Autodesk Revit to an AI platform, set up the basics. The workflow below is beginner-friendly, but it assumes the model has enough structured information to be useful.

Software and access

You will need:

• Autodesk Revit installed on a workstation

• A Revit model with rooms, spaces, systems, families, and materials modeled with reasonable care

• Dynamo for Revit, pyRevit, or a custom Revit Plugin

• Access to an AI platform with an API key and REST API endpoint

• A text editor or IDE, such as Visual Studio Code or Visual Studio

• A way to view JSON and CSV files

• Optional reporting tools, such as Excel, Power BI, or a shared project dashboard




Revit knowledge

You should understand:

• Revit categories such as Rooms, Spaces, Mechanical Equipment, Plumbing Fixtures, Walls, Windows, Doors, and Materials

• Instance parameters and type parameters

• Revit schedules

• Shared parameters

• Basic filtering by category, phase, level, and design option

• How your team names systems, rooms, families, and materials




Automation knowledge

You do not need to be a senior developer, but the tutorial will be easier if you know:

• Basic JSON structure

• Basic Python or C#

• What an API key is

• How HTTP requests work

• How to test a small script before using it on a full project model




LEED knowledge

You should have a working LEED scorecard or sustainability matrix for the project. The automation cannot guess the owner’s goals or certification path. Confirm these items before building the workflow:

• LEED rating system and version

• Targeted LEED Certification level

• Credits the team is pursuing

• Documentation owner for each credit

• Required evidence for each credit

• Project-specific assumptions and exclusions




Start with one credit family, such as Water Efficiency or Indoor Environmental Quality. A narrow first workflow is easier to test and easier to trust.

How the Revit and AI workflow works

A practical Revit AI Automation setup usually has five parts:

1. Revit model




   The source of geometry, spaces, families, systems, and parameters.




2. Data extraction layer




   A Dynamo graph, pyRevit script, Revit API command, or custom Revit Plugin that reads model data.




3. Data schema




   A consistent JSON or CSV format that tells the AI platform what each value means.




4. AI platform




   A service that checks, classifies, summarizes, or drafts documentation support based on structured BIM data.




5. Review and reporting layer




   Schedules, parameters, reports, dashboards, or issue logs that humans review before submission.




The goal is not to send an entire model to an AI system. The goal is to send selected, useful, project-approved data. For LEED Automation, that might include plumbing fixture rates, material names, room areas, or equipment efficiency values.

Step 1. Define the LEED tasks you want to automate

Do not begin with code. Begin with the documentation pain point.

Choose a task that is repetitive, data-heavy, and easy to verify. Good starter use cases include:

• Checking plumbing fixtures for missing flow rates

• Listing rooms that need occupancy or ventilation data

• Flagging materials without manufacturer sustainability data

• Finding walls, roofs, and glazing without thermal performance parameters

• Creating draft narratives from approved model values

• Comparing modeled lighting power density against project targets

• Preparing Energy Modeling input summaries from spaces and equipment




For a beginner Autodesk Revit Tutorial, Water Efficiency is often a good first target because plumbing fixtures are usually easy to find by category, and the required flow or flush rate data can be stored in parameters.

Create a simple table before you automate anything.

LEED task	Revit source	Needed parameter	AI task	Human review
Plumbing fixture check	Plumbing Fixtures	Flow Rate or Flush Rate	Flag missing or unusual values	MEP engineer confirms values
Low-emitting materials review	Materials and families	Product type, VOC data, manufacturer	Classify missing documentation	Sustainability lead verifies submittals
Ventilation data check	Spaces and mechanical systems	Outdoor air, occupancy, system name	Find incomplete spaces	Mechanical engineer reviews
Envelope summary	Walls, roofs, windows	U-factor, R-value, assembly type	Draft summary and list gaps	Architect or energy modeler confirms

This table becomes your workflow map.

Step 2. Prepare the Revit model for clean data

AI for Revit works best when the model data is consistent. If the model contains unclear family names, missing parameters, duplicate systems, or placeholder material names, the AI output will reflect that confusion.

Before building the connection, clean the model enough to support the workflow.

Add shared parameters for LEED tracking

Create shared parameters that can appear in schedules and be read by scripts. Common examples include:

• `LEED_Credit`

• `LEED_Data_Source`

• `LEED_Documentation_Status`

• `LEED_Notes`

• `LEED_Required`

• `AI_Check_Status`

• `AI_Check_Notes`

• `AI_Last_Checked`




For plumbing fixtures, you may also need:

• `Fixture_Flow_Rate_GPM`

• `Fixture_Flush_Rate_GPF`

• `WaterSense_Status`

• `Fixture_Use_Type`




For materials, useful fields include:

• `Material_Product_Category`

• `EPD_Available`

• `HPD_Available`

• `VOC_Compliance`

• `Manufacturer_Name`




Build Revit schedules first

Before writing a script, create a Revit schedule that shows the data you plan to extract. This is one of the best beginner tips for BIM Automation.

If the schedule looks wrong, the automation will likely be wrong too.

For example, create a Plumbing Fixture LEED Check schedule with:

• Family and Type

• Level

• Count

• Flow rate

• Flush rate

• Fixture use type

• LEED documentation status

• AI check notes




Once the schedule works, the Revit API can pull similar data.

Clean parameters make LEED fixture checks easier to automate.

Step 3. Create a simple LEED data schema

A data schema is the agreed format for the information you send from Revit to the AI platform. Keep it simple at first.

Here is an example JSON structure for plumbing fixture checks:

json

{
  "project": {
    "name": "Sample Library Renovation",
    "leed_rating_system": "LEED v4.1 BD+C",
    "target_certification": "Gold"
  },
  "workflow": {
    "credit_family": "Water Efficiency",
    "task": "Plumbing fixture documentation check"
  },
  "elements": [
    {
     "revit_id": "123456",
      "category": "Plumbing Fixtures",
      "family": "Lavatory Sink",
      "type": "0.35 gpm sensor faucet",
      "level": "Level 2",
      "flow_rate_gpm": 0.35,
      "flush_rate_gpf": null,
      "leed_documentation_status": "Needs Review"    }
  ]
}

Avoid sending more data than needed. Do not include confidential owner data, personal information, or full model files unless your organization has approved that process.

A good schema should include:

• Project context

• LEED credit family

• Task description

• Element ID

• Category

• Family and type

• Relevant parameters

• Current documentation status

• Notes or exceptions




The `revit_id` is especially useful because it lets the automation write results back to the correct element later.

Step 4. Extract Revit data

You can extract data from Revit in several ways. Choose the simplest method that fits your team.

Option 1. Use schedules and CSV export

This is the easiest beginner path.

1. Build a Revit schedule.

2. Include the parameters needed for the LEED task.

3. Export the schedule to CSV.

4. Send the CSV content to the AI platform through a separate script.

5. Review the results.

6. Import or manually copy approved results back into Revit.




This method is not fully automated, but it is safe and easy to test.

Option 2. Use Dynamo

Dynamo is a good bridge between visual scripting and Revit Workflow Automation. It can collect elements, read parameters, format data, and call external services with Python nodes.

A Dynamo workflow might:

1. Select all Plumbing Fixtures.

2. Read family, type, level, and flow rate parameters.

3. Format the results as JSON.

4. Send the JSON to an AI API.

5. Receive a list of missing values and notes.

6. Write notes back to `AI_Check_Notes`.




This works well for BIM managers who want a controlled graph without building a full add-in.

Option 3. Use the Revit API

The Revit API provides the most control. It is the right choice if you want a repeatable Revit Plugin with buttons, logs, user settings, and model write-back.

A simplified C# extraction pattern looks like this:

FilteredElementCollector collector = new FilteredElementCollector(doc)    .OfCategory(BuiltInCategory.OST_PlumbingFixtures)    .WhereElementIsNotElementType();
foreach (Element element in collector)
{
    string familyName = element.get_Parameter(BuiltInParameter.ELEM_FAMILY_PARAM)        ?.AsValueString();
    string typeName = element.Name;
string flowRate = element.LookupParameter("Fixture_Flow_Rate_GPM")        ?.AsValueString();
    string status = element.LookupParameter("LEED_Documentation_Status")
        ?.AsString();
// Add values to your JSON object here.
}

This is not a complete plugin, but it shows the core idea: collect elements, read parameters, and prepare structured data.

Step 5. Connect the workflow to an AI platform

Most AI platforms accept requests through a REST API. The exact endpoint, authentication method, and request format will vary by provider, so use your platform’s documentation.

The connection usually follows this pattern:

1. Create an API key in the AI platform.

2. Store the key securely outside the Revit model.

3. Build a JSON payload from Revit data.

4. Send the payload to the AI endpoint.

5. Receive a JSON response.

6. Parse the response.

7. Write selected results back into Revit or export them for review.




A simplified Python example looks like this:

import requests
import json
api_url = "https://your-ai-platform.example/api/check"
api_key = "YOUR_API_KEY"
payload = {
    "task": "Check plumbing fixtures for LEED documentation gaps",
    "instructions": (
        "Review each Revit element. Flag missing flow or flush rates. "
        "Return a short note for each element. Do not invent values."
    ),
    "elements": [
        {
            "revit_id": "123456",
            "family": "Lavatory Sink",
           "type": "0.35 gpm sensor faucet",
            "flow_rate_gpm": 0.35,
            "flush_rate_gpf": None
        }
    ]
}
headers = {
    "Authorization": f"Bearer {api_key}",
    "Content-Type": "application/json"
}
response = requests.post(api_url, headers=headers, data=json.dumps(payload))
result = response.json()
print(result)

The instruction matters. Tell the AI exactly what it should and should not do.

Good instruction language:

Check the provided Revit plumbing fixture data for LEED documentation completeness. Flag missing flow rates and flush rates. Do not create product values. Return one status per element: Complete, Needs Review, or Missing Data. Return a short explanation for each status.

Poor instruction language:

Make this ready for LEED.

The second version is too broad. The AI may give a vague answer that is hard to verify.

Step 6. Ask the AI platform for structured output

Freeform text is hard to write back into Revit. Structured output is much better.

Ask the AI platform to return JSON like this:

```json

{

  "results": [

    {

      "revit_id": "123456",

      "status": "Complete",

      "note": "Flow rate is provided. No flush rate required for this fixture type.",

      "suggested_credit_family": "Water Efficiency"

    },


    {

      "revit_id": "123457",

      "status": "Missing Data",

      "note": "No flow rate or flush rate found. Add verified product data before LEED submission.",

      "suggested_credit_family": "Water Efficiency"

    }

  ]

}

```

This format supports a clean loop back to Revit:

• Match `revit_id` to the Revit element

• Write `status` to `AI_Check_Status`

• Write `note` to `AI_Check_Notes`

• Write credit family to `LEED_Credit`




This is where BIM and Artificial Intelligence becomes practical instead of abstract. The AI does not need to understand every part of the building. It needs to perform a clear review task on clear model data.

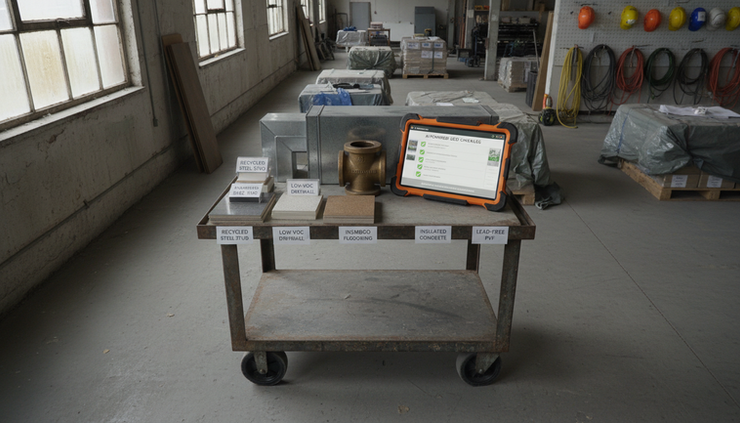

Material data can be checked against LEED documentation needs.

Step 7. Write AI results back into Revit

Writing results back into Revit turns the workflow from a report into a live model-checking system.

Use dedicated parameters so AI output does not overwrite verified engineering or architectural data. For example:

• `AI_Check_Status`

• `AI_Check_Notes`

• `AI_Last_Checked`

• `LEED_Documentation_Status`




Do not let the AI overwrite product performance values such as U-factors, flow rates, VOC content, or equipment efficiency. Those values should come from the design team, manufacturer data, submittals, or approved analysis tools.

A simplified C# write-back pattern looks like this:

using (Transaction t = new Transaction(doc, "Write AI LEED Check Results"))

{
    t.Start();
Element element = doc.GetElement(new ElementId(123456));
    Parameter statusParam = element.LookupParameter("AI_Check_Status");

    if (statusParam != null && !statusParam.IsReadOnly)

    {
        statusParam.Set("Complete");
    }
Parameter notesParam = element.LookupParameter("AI_Check_Notes");

    if (notesParam != null && !notesParam.IsReadOnly)

    {

        notesParam.Set("Flow rate is provided. No flush rate required.");

    }

    t.Commit();
}

After write-back, create Revit schedules that group elements by AI status:

• Complete

• Needs Review

• Missing Data

• Not Checked




This gives the project team a model-based LEED Documentation tracker.

Step 8. Use AI for Revit in MEP and energy workflows

AI in MEP Engineering can support LEED tasks tied to indoor air quality, water use, lighting, controls, and energy performance. The key is to keep each workflow tied to a defined data set.

Ventilation and indoor environmental quality

For spaces, the workflow can check whether required parameters are populated:

• Space name

• Occupancy type

• Area

• Occupant load

• System served

• Outdoor air value

• Exhaust requirements

• Ventilation notes




The AI can flag incomplete spaces and draft a short review note. The mechanical engineer still confirms code, standard, and project assumptions.

Lighting and controls

For lighting design, the automation can extract:

• Room area

• Lighting fixture types

• Connected load

• Control zones

• Daylight zones

• Occupancy sensor status




The AI can help summarize gaps, such as rooms without control intent or spaces missing fixture data.

Energy modeling support

Energy Modeling often uses inputs that overlap with Revit, but Revit is not always the final analysis tool. The automation can still help prepare information for review:

• Space areas and usage

• Envelope assembly names

• Window-to-wall relationships

• Mechanical system names

• Equipment efficiency parameters

• Lighting power density assumptions




The safest approach is to let automation collect and check inputs, then let qualified energy modelers run and validate the analysis in approved tools.

Step 9. Create review reports for the project team

LEED Automation should end in a reviewable report, not just updated parameters.

Good report formats include:

• Revit schedules filtered by `AI_Check_Status`

• CSV exports for sustainability consultants

• Issue logs for BIM coordination

• Dashboards showing missing data by discipline

• Draft LEED credit narratives with source element IDs

• Model views that isolate incomplete elements




A practical weekly report might include:

Report section	Purpose
Missing data by credit	Shows the credits most at risk
Missing data by discipline	Helps assign follow-up tasks
Element-level exceptions	Gives model IDs and notes
Draft narrative text	Gives the sustainability lead a starting point
Data source list	Shows whether values came from model, submittal, or manual review

Draft narratives can save time, but they need careful review. AI-generated LEED language should never be submitted without checking it against the project documents, rating system requirements, and approved calculations.

Step 10. Protect quality, security, and accountability

Revit AI Workflow tools can improve accuracy, but only when the team controls data quality.

Use these rules:

• Keep a human reviewer in the loop.

• Do not send confidential project data without approval.

• Store API keys outside the model.

• Keep logs of each AI check.

• Use read-only tests before writing to the model.

• Save backup copies before running model updates.

• Use dedicated AI parameters.

• Do not let AI invent missing LEED values.

• Track the source of each value.

• Review outputs before sharing them with owners or certification reviewers.




A useful log entry should include:

• Date and time

• Revit model name

• User who ran the tool

• Credit or workflow checked

• Number of elements reviewed

• Number of missing items found

• AI platform version or endpoint used, if available

• Notes about errors or skipped elements




This makes the workflow easier to audit and easier to improve.

Review logs help teams trace automated LEED checks.

Practical tips for beginners

Start small. The fastest way to fail is to automate too much before the model is ready.

Use these beginner-friendly practices:

• Pick one LEED credit family first.

• Test on a copied Revit model.

• Start with schedule export before building a plugin.

• Use 10 to 20 elements for the first test.

• Ask the AI for JSON, not long paragraphs.

• Keep prompts direct and specific.

• Store AI notes in separate parameters.

• Use Revit schedules to review results.

• Compare AI checks with manual checks.

• Add one new credit workflow only after the first one works.




For a first project, a realistic goal is simple: identify missing LEED documentation fields in Revit and write clear notes back to the model. Once that works, expand to draft narratives, dashboard reporting, and multi-credit checks.

What success looks like

A working Revit API and AI connection should produce clear, reviewable results. The team should be able to open Revit and see which elements are ready, which need attention, and which require verified product data.

A successful workflow usually has these signs:

• Revit schedules show LEED readiness by category and credit.

• Missing data is visible early, not days before submission.

• MEP, architecture, and sustainability teams use the same source data.

• AI notes point to specific elements, not vague issues.

• Draft documentation includes traceable model references.

• Human reviewers remain responsible for final LEED decisions.




The best use of AI for Revit is not automatic certification. It is better coordination, faster checking, and clearer documentation. When the model is structured well, BIM Automation can turn repetitive LEED tasks into a repeatable, auditable process that supports Sustainable Building Design from early design through construction closeout.
